Home > Products > Hoist > Wire Rope Electric Hoist CD MD Hoist

Wire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD Hoist
Wire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD HoistWire Rope Electric Hoist CD MD Hoist

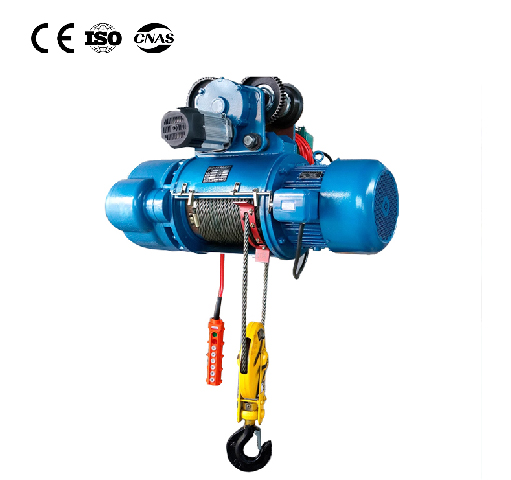

Wire Rope Electric Hoist CD MD Hoist

Manufacturer's direct supply, The quality is more assured

Strong power

Fast heat dissipation

Low noise

Quality is stable

Lifting Capacity: 0.25~16t; Customized：YES

Inquiry Now Send E-mail
Description Features Technical Data Components

Description

Model CD,MD Wirerope electric Hoist is a samall-sized lifting equipment,can be mounted on single beam, bridge,ganty and Jib cranes ,With slight modification ,it can also be used as a winch .It is widely used in factories ,mines harbours ,warehouses ,cargo storage areas and shops ,essential in raising working efficiency and improving working conditions.

Lifting Capacity: 0.25~16t

Electric hoist model cd md is a wire rope electric hoist with single speed or double speeds, which is a classic hoist for single girder crane, monorial, I beam structure, etc. CD1 and MD1 wire rope electric hoist is the main part of the motor, transmission mechanism, reel and sprocket.

Model CD1 Electric Hoist has only one normal speed ,which can satisfy normal application ,ModeI MD1 Electric Hoist provides two speeds; normal speed and low speed ,At a low speed ,it can do precise loading and unloading ,moulding of sand box ,maintenance of machine tools ,etc .Thus ModelMD1 Electric Hoists is more widely used than Model CD1.

To meet the needs of lifting heavier cargo,our factory also manufactures HC16t、HC20t、HC32t、SHC40t、 SHC50t、SHC63t Electric hoist.

1

Features

Reducer: High-strength hard gear surface, inclined gear driving with low noise.

Motor: Squirrel cage motor, Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suitable for higher classification.

Wire Rope: The tensile strength is 1760N/mm2.

Limit Switch: Hoist limit switch, gravity switch.

Working duty: A3/A4

Speed: one speed or two speed

Technical Data

Type CD1、(MD1)
Capacity) 0.5 1 2 3 5 10 16
Hoisr  g(m) 6 9 12 6 9 12 18 24 30 6 9 12 18 24 30 6 9 12 18 24 30 6 9 12 18 24 30 9 12 18 24 30  9 12 18 24 30
Hoisting speed
(m/min)		 8(0.8/8) 7(0.77) 3.5(0.35/3.5)
Travel speed
(m/min)		 20/30 18
Steel wire rope Dia(mm) 4.8 7.4 11 13 15 17.5
Specification 6x37+FC
Track 16-28b 20a-28b 25a-45a 32b-45a 32b-63c
Min curvature
radius(m)		 1.5 1.5 2 3 4 2 2.5 3 4 2 2.5 3 4 2.5 3 4 4.5 6 3.5 4 6 7.5 9 3.5 4 6 8 11
Lifting motor Type ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD151-4
ZDS10.4/0.8 ZDS10.4/1.5 ZDS10.4/3.0 ZDS10.4/4.5 ZDS10.8/7.5 ZDS12.21.3 ZDS12.213
Power(kw) 0.8(0.4/0.8) 1.5(0.4/1.5) 3.0(0.4/3.0) 4.5(0.4/4.5) 7.5(0.8/7.5) 13(2.213)
Rotation speed
(m/min)		 1380                                                                                                          1400
Curent(A) 2.4(0.72/2.4 )     4.3(0.72/4.3) 7.6(1.25/7.6) 11(1.25/11) 18(2.4/18) 30(5.2/30)
Running motor Type ZDY111-4 ZDY112-4 ZDY121-4
Power(kw) 0.2 0.4 0.8 0.8X2
Rotation speed
(m/min)		 1380
Current(A) 0.72 1.25 2.4 2.4X2
No ofConnecing 120
Worhing system intermediate FC=25%
Power source three-phase AC 380V 50Hz
basic size L basie
dimensions
(mm)		 616 688 760 758 856 954 820 1150 1346 1542 920 1020 1220 1420 1620 932 1035 1138 1344 1550 1756 1047 1157 1257 1467 1677 1887 1602 1783 2145 2507 2869 1872 2092 2532 2952 3387
L1 274 346 418 345 443 541 737 933 1129 352 452 552 752 952 1152 380 483 586 792 998 1204 415 525 625 835 1045 1255 875 1056 1418 1780 1780 2142 1136 1356 1796 2176
L2 132 159 188 233 268 302
L3 318 390 462 401 499 597 793 989 1185 418 518 618 818 1018 1218 448 551 654 860 1066 1272 485 606 695 905 1115 1325 949 1130 1492 1854 2216 1210 1430 1870 2250 2690
L4 190 196 240 264 320 376
B 884 884 930  1055
H 650 667 767 840 950 954 1058 1120 1183 1350 2100
d 20 20 26 31 31
b 185 185 270 470 660 860 205 280 480 680 880 205 320 530 730 940 228 340 550 760 970 490 670 1030 1395 1760 860 1080 1520 1940 2375
Weight CDr cane weight
(kg)		 121 125 130 137 145 172 188 204 220 221 232 285 309 332 353 281 297 354 390 420 451 437 495 597 646 686 726 1048 1098 1209 1301 1411 1130 1183 1286 1463 1563
MDt 138 142 147 164 174 199 215 231 247 256 267 320 344 361 388 311 327 384 420 450 481 508 532 654 703 743 783 1104 1154 1265 1366 1467 1220 1273 1367 1553 1653
CO¹
M1		 89 94 99 105 112 120 135 159 165 166 179 186 209 229 249 222 236 250 284 312 340 377 400 415 456 493 529 795 841 943 1035 1127 850 903 1006 1183 1283
106 111 116 132 140 147 162 177 192 201 211 221 244 264 284 252 266 280 314 342 370 430 457 472 513 549 586 851 897 999 1091 1183 949 997 1090 1273 1373

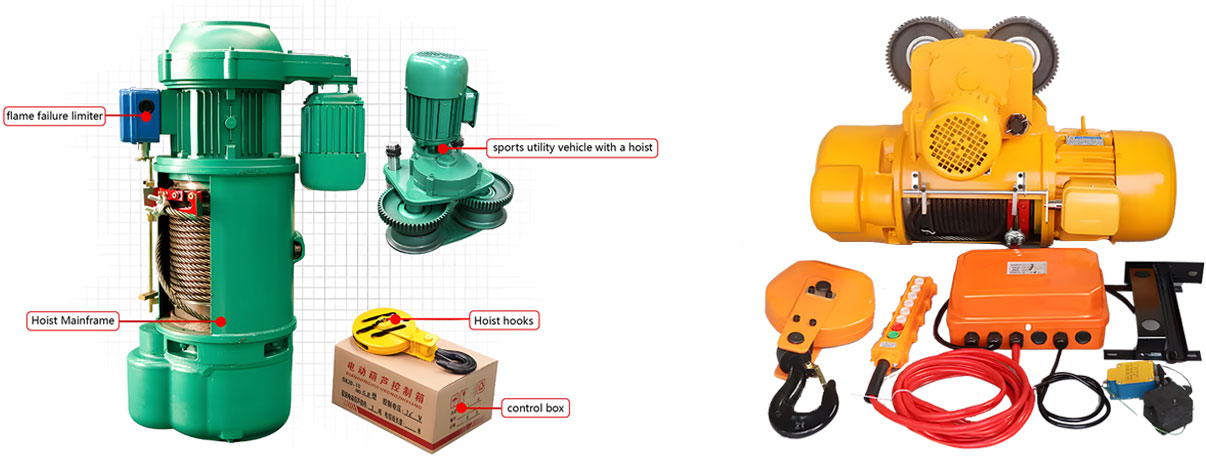

Components

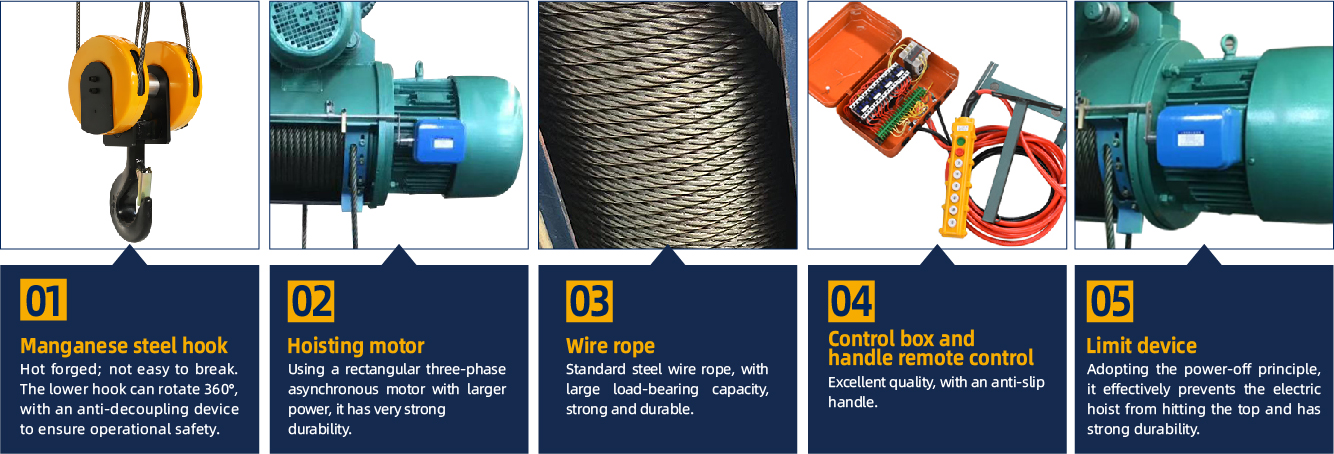

p1

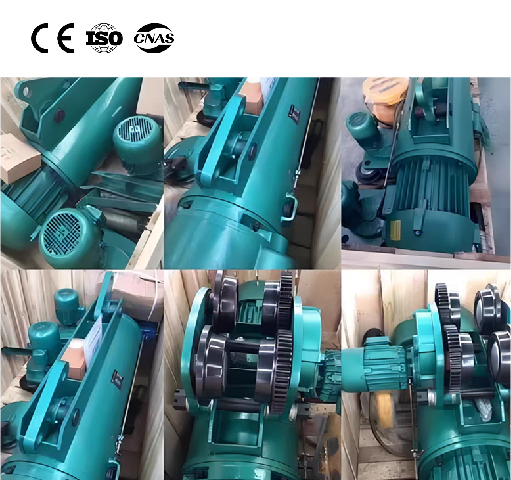

Wire Rope Electric Hoist CD MD Hoist Packing Wire Rope Electric Hoist CD MD Hoist shipping

welding technology



Our Honor & certification

Electric Hoist ce

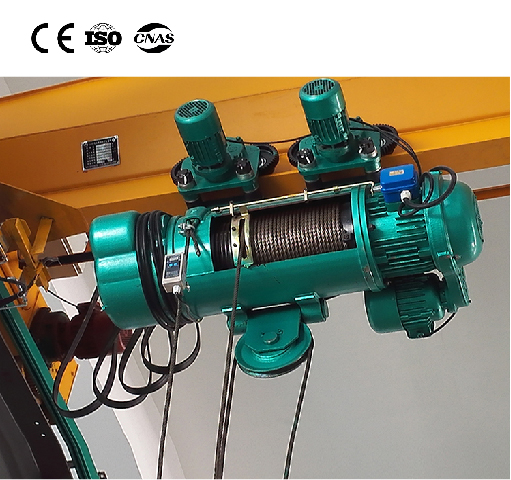

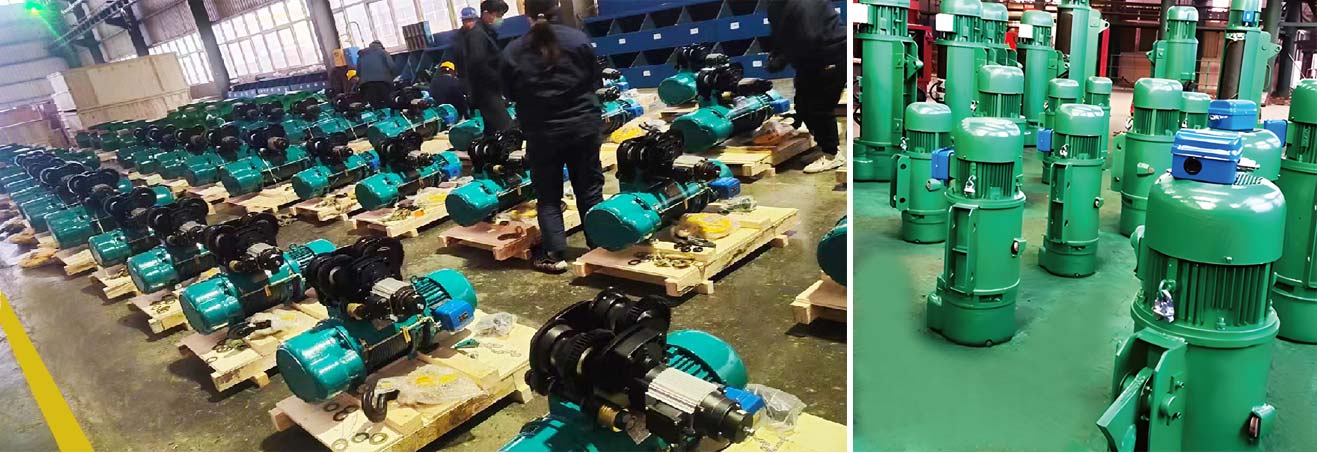

Product display

Wire Rope Electric Hoist CD MD Hoist Wire Rope Electric Hoist CD MD Hoist
