Wheel Set

Wheel Set

Wheel Set

Wheel Set

Wheel Set

Wheel Set

Wheel Set

Wheel Set

Wheel Set

Span: 7.5-25.5 M

Capacity: 1--12.5 t

Max.Wheel Load: 13.5~90.94 kn

Traveling Rail: P24~P43

Trolley Weight: 405~740 kg

Inquiry Now Send E-mail

Description Features Technical Data Components

Description

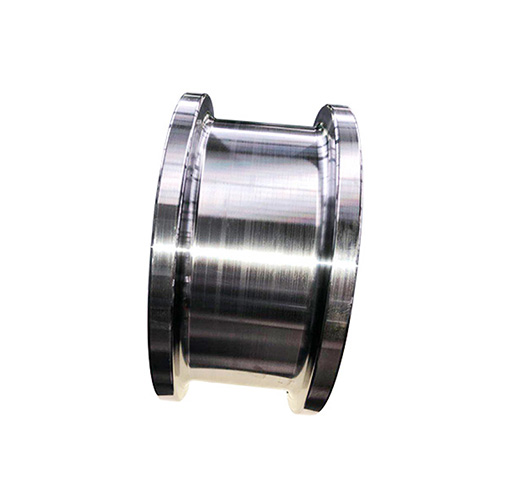

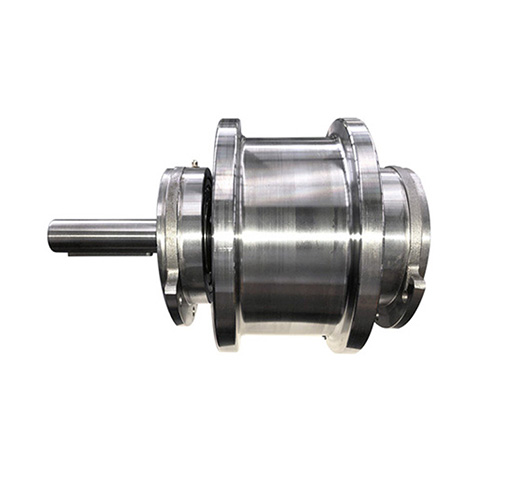

The wheel set is a mechanical device consisting of a wheel and a shaft, a bearing and a bearing housing. The crane wheel set is generally used for the vehicle to support the crane and the load, and at the same time, the crane is allowed to perform the reciprocating running operation on the specified track.

Yangyumech wheel set has been widely used in single beam cranes and double beam cranes, and has achieved good application results, which has been recognized by many users. Due to the excellent performance of such wheel sets, more and more applications will be applied in the lifting industry.

Features

The wheels are light in weight,

Small volume,

Easy to install,

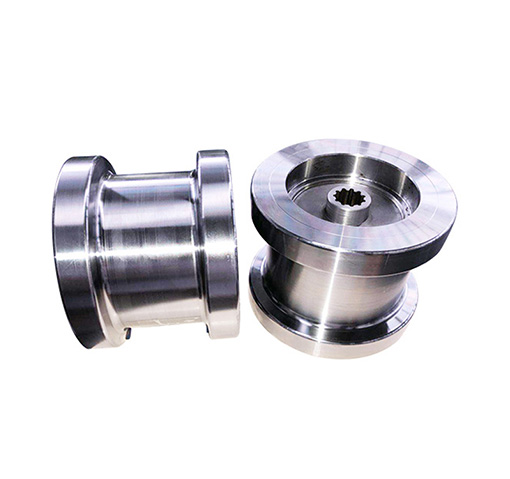

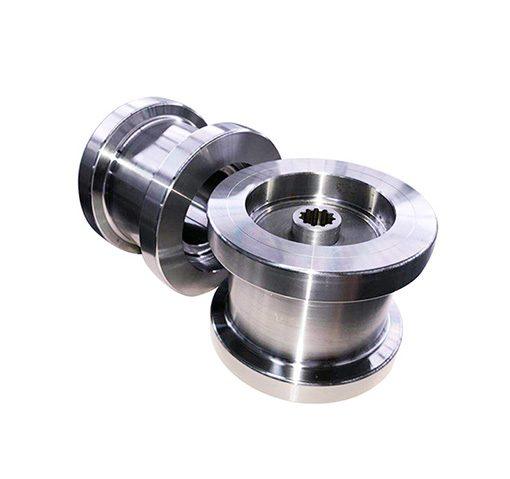

The forged wheel piece is mainly composed of four parts: wheel axle, wheel piece, bearing box and bearing. Because it needs to be directly matched with the three-in-one reducer, it does not need to be connected by the coupling, and the assembly precision is high.

Technical Data

Components
