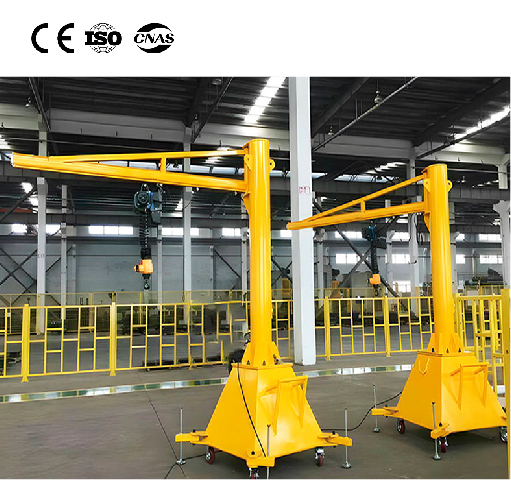

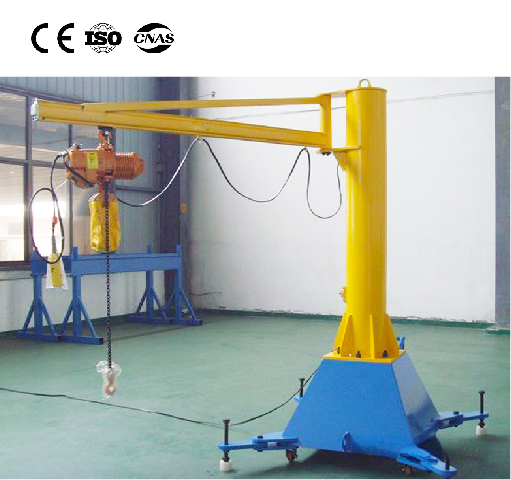

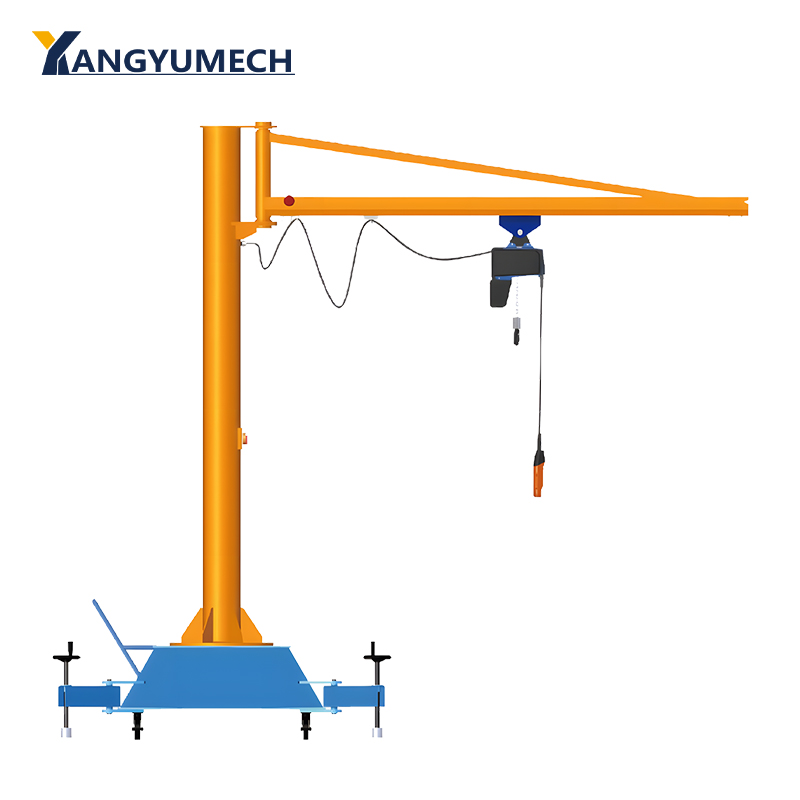

Movable JIB Crane
Capacity: up to 1 ton
Arm length: up to 5 m
Lifting height:up to 4m
Work duty: M3-M5
Rotation angle: 120-360°
Raged voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode: Floor control / Remote control
Description
Movable JIB crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the small place with many equipment, short distance hoisting, frequent operation of the production line. The product mainly used in the factory building which is suitable for machinery manufacturing, railway, chemical, light industry and other industries of production and maintenance.
The mobile crane can move freely in the smooth working area under the push of manpower, and can be used in any place where it is inconvenient to use the hanging crane. Easy to operate, flexible, wide adaptability and other characteristics, is an automatic production line necessary separate emergency hoisting equipment
Economic and efficient, efficient energy saving.
Features
Cover every corner
Workstation Flexibility
Easy movement
Precise load positioning
Lightweight structure
Easy to install
Technical Data
|
Type |
BZ0.5 |
BZ0.5 |
BZ0.5 |
BZ0.5 |
BZ0.5 |
|
|
Lift Capacity (t) |
0.5 |
1 |
2 |
3 |
5 |
|
|
Max. Lift Height(m) |
3 |
3 |
3 |
4 |
4 |
|
|
Slew Angle(0) |
360 |
360 |
360 |
360 |
360 |
|
|
Lift Speed (m/min) |
Normal |
8 |
8 |
8 |
8 |
8 |
|
Slow |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Level Travel Speed (m/min) |
20 |
20 |
20 |
20 |
20 |
|
|
Slew Angular Speed (r/min) |
1 |
0.75 |
0.7 |
0.9 |
0.6 |
|
