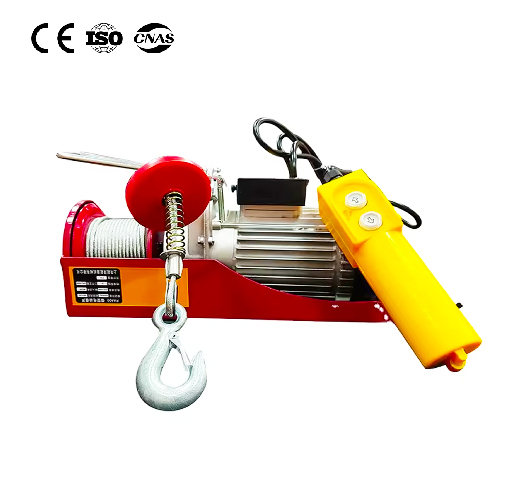

Micro Electric Hoist
Micro electric hoist is a type of lifting hoist, generally divided into household micro hoist and industrial micro hoist, and can also be divided into wire rope micro electric hoist and ring chain micro electric hoist.
Description
Micro electric hoist is a type of lifting hoist, generally divided into household micro hoist and industrial micro hoist, and can also be divided into wire rope micro electric hoist and ring chain micro electric hoist. Generally divided into fixed and operational types, it is suitable for various occasions and can lift goods below 1000 kilograms, especially suitable for lifting heavier items from downstairs in high-rise buildings. The structure is simple, easy to install, small and exquisite, and single-phase electricity is used as the power source. The micro electric hoist meets international standards in production design, ensuring safety during use. The motor heat sink adopts a cast iron structure, which improves its service life. The lifting speed of the micro electric hoist can reach 10 meters per minute, and the initial design of the steel wire rope length is 12 meters (customizable for extension). In terms of lifting hooks, advanced double hook settings have been specially designed, greatly increasing the lifting weight of the micro electric hoist. The micro electric hoist uses a 220V civilian power source, which is particularly suitable for daily civilian use, industrial production lines, freight logistics and other occasions.
Features
The design of the micro electric hoist is flexible and convenient to use.
When the limit baffle touches the limiter, the lifting machine automatically stops working.
If the steel wire rope is lifted in reverse, the hoist motor will automatically stop working.
The hook design of the hoist is divided into two states: dynamic loading and static loading.
Used for household 220V power supply operation.
The power cord is plug-in and easy to use.
The hoist hook can rotate 360 °
Technical Data
| Model | Single/double hook Lifting load |
Single/double hook Lifting speed |
Single/double hook Lifting height |
Motor power | Motor capacitor | Motor Net Weight | Wire rope length |
| PA1000 | 500/1000 kg |
10/5m (min) |
a/12m | 1.80kw | 70vf | 29.4kg | 12-30m |
| FA800 | 400/800 kg |
10/5m (min) |
6/12m | 1.45kw | 50vf | 17.8kg | 12-30m |
| FA600 | 300/600 kg |
10/5m (min) |
6/12m | 1.20kw | 40yf | 16.8kg | 12-30m |
| FA500 | 250/500 kg |
10/5m (min) |
a/12m | 1.05kw | 30vf | 16.3kg | 12-30m |
| FA400 | 200/400 kg |
10/5m (min) |
6/12m | 0.8kw | 30vf | 15.8kg | 12-30m |
| FA300 | 150/300 kg |
10/5m (min) |
6/12m | 0.63kw | l6vf | 16kg | 12-30π |
| PA200 | 100/200 kg |
10/5m (min) |
6/12m | 0.51kw | l6vf | 16kg | 12-30m |
| Note: All dimensions are measured manually, there may be errors. Customization is supported. Please consult customer service for more details. | |||||||

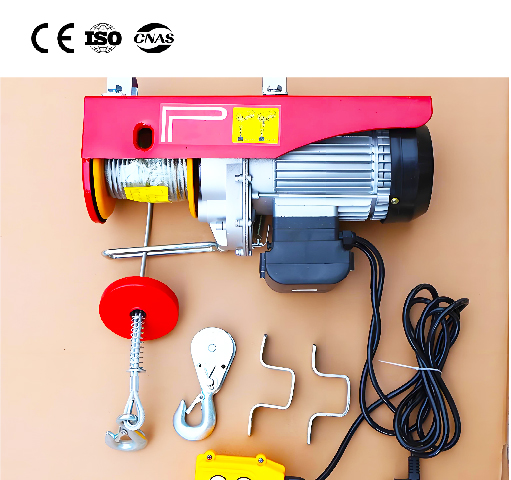

Components
-
Applicable scope

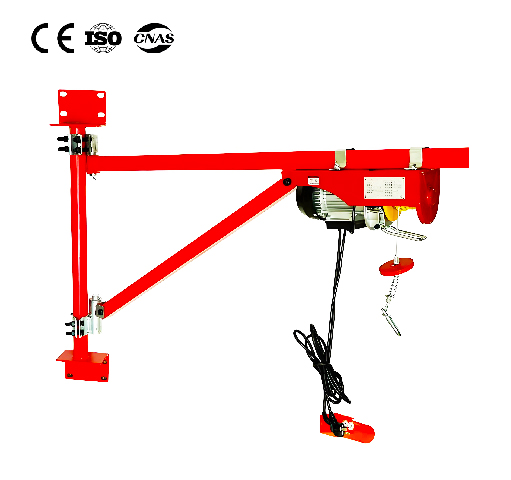

Micro electric hoists, as a new type of electric hoist, are widely used in modern industries such as mechanical manufacturing, electronics, automobiles, shipbuilding, workpiece assembly, and high-tech industrial zones, such as production lines, assembly lines, assembly machines, and logistics transportation. It can better demonstrate its excellent quality when working in warehouses, docks, batching, hanging baskets, and narrow workspaces. It is the best supporting product for fixed column and wall type rotary arm cranes. Micro electric hoists are widely used in factories, workshops, homes, warehouses, restaurants, shopping malls, decoration, and transportation due to their beautiful appearance, reasonable structure, convenient installation, low noise, and safe and reliable use.
-
Maintenance knowledge
Regularly inspect the bolts and power lines that secure the micro electric hoist, and promptly remove dust and corrosive liquids accumulated on the cable lines.
lubricating oil
The newly purchased micro electric hoist contains lubricating oil for lifelong maintenance. When operating the micro electric hoist, there may be a small amount of leakage, especially during the first operation. This is normal and there is no need to refuel the micro electric hoist.
Steel wire rope
Electric hoists require regular inspection and frequent replacement of steel wire ropes. If the steel wire rope is worn out, it should be replaced immediately.
