Lifting Platform
Lifting Platform

Lifting Platform

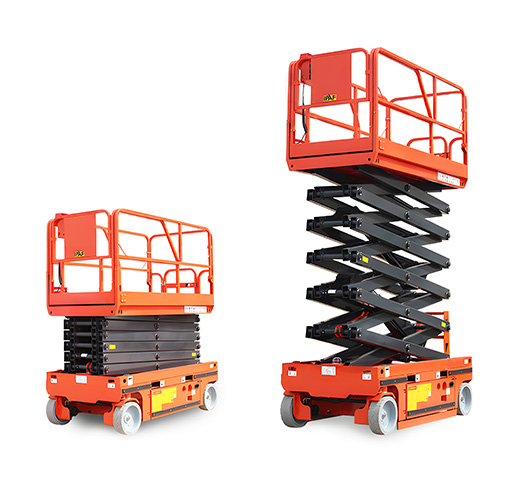

Lifting platform is a kind of multifunctional hoisting and handling mechanical equipment, which can be divided into fixed type and mobile type: the mobile type can be divided into straight-arm type, curved-arm type, scissor type, mast type, aluminum alloy lifting platform

Performance: Reliability and versatility for enhanced efficiency

Compact and flexible operation: Most machines are equipped with a zero-radius in-turn system for flexible operation in crowded construction sites, lifts and narrow passages. Top-down control:Up, down,left,right, forward, backward, steering and other movements, one person can easily and comfortably complete aerial work.

Description

A lifting platform is a kind of hoisting machinery for vertically transporting people or objects. It also refers to the equipment for vertical transportation in logistics systems such as factories and automated warehouses. Various planar conveying devices are often installed on the lifting platform to serve as the connection device of conveyor lines at different heights. Generally, it is hydraulically driven, so it is called a hydraulic lifting platform. In addition to being used for the transportation of goods at different heights, it is widely used in operations such as installation and maintenance at high altitudes. The characteristic of the lifting platform's free lifting has been widely used in municipal maintenance, cargo transportation at docks and logistics centers, building decoration, etc. After installing the chassis of a car, the chassis of an electric car, etc., it can move freely, and the working height space has also changed. It has the advantages of light weight, self-propelled walking, electric starting, self-supporting legs, simple operation, large working area, and the ability to conduct high-altitude operations across obstacles with 360-degree free rotation.

Features

Automatic pothole protection system, removable control box, proportional control,

side out battery tray, full run alarm, horn, side out extension platform,

forklift slots,can be lifted from the back and sides,four six v 225 amp/hour deep cycle batteries,

it safety protection system, spring-loaded door LED battery charge indicator;

Technical Data

Moedl Elevate the height Lift weight(kg) Table size(L × W)m Auxiliary power(kw) Weight(kg)
SJY-H-4 300-2000 1.41×1.06 1.5  880
SJY-H-6 300-2000 1.70×1.06 1.5  950
SJY-H-8 8 300-2000 1.75×1.08 2.2  1050
SJY-H-10 10 300-2000 2.00×1.20 2.2 1300
SJY-H-12 12  200-1000 2.00×1.20
2.40×1.35
2.2  1500
1800
SJY-H-14 14  200-500 2.44×1.35 3.0  2300
SJY-H-16 16  200  2.90×1.50 4.0  3200
SJY-H-18 18  200  3.10×1.60 4.0  4500

Components

  • Lifting platform is a kind of multifunctional hoisting and handling mechanical equipment, which can be divided into fixed type and mobile type: the mobile type can be divided into straight-arm type, curved-arm type, scissor type, mast type, aluminum alloy lifting platform, telescopic cylinder type: the fixed type includes scissor type, guide rail type lifting platform, chain type lifting platform, loading and unloading platform and attached electric construction platform, etc.

    The mobile types are divided into: four-wheel mobile lifting platform, two-wheel traction type lifting platform, vehicle modified lifting platform, hand-push type lifting platform, hand-crank type lifting platform, AC and DC dual-purpose lifting platform, battery vehicle-mounted lifting platform, self-propelled lifting platform, diesel engine curved-arm self-propelled lifting platform, folding-arm lifting platform, telescopic cylinder type lifting platform, and aluminum alloy lifting platform.
