LB Explosion-Proof Single Girder Overhead Traveling Crane

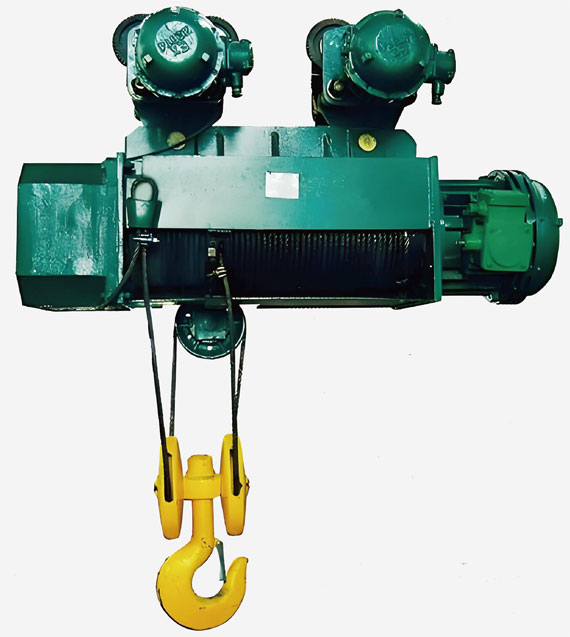

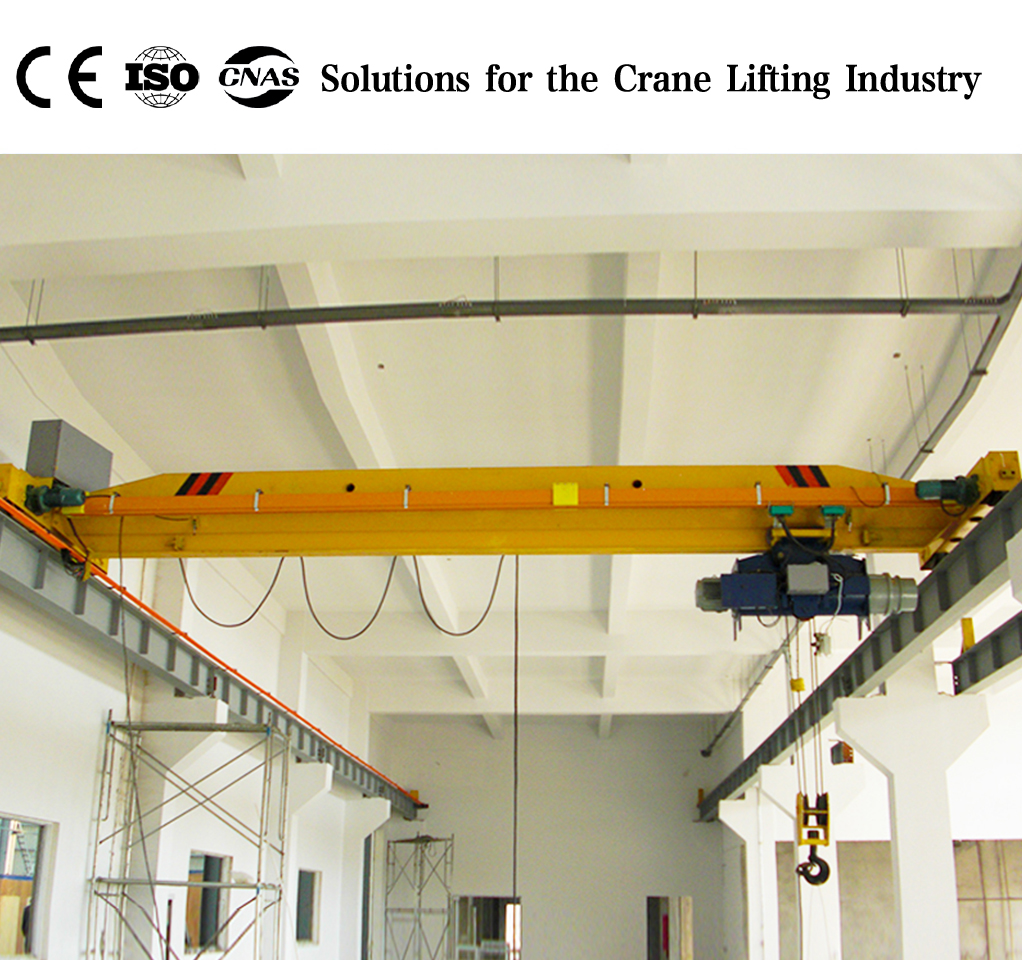

The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.
Explosion-proof Grade: ExdⅡBT4/ExdⅡCT4
Work Duty: A4
Lifting weight: 1-20 tons
Lifting height: 1-30 meters
Span: 7.5-24.5 meters
Working level: Intermediate
Working environment: -25℃～+40℃
Explosion-proof grade: IIB or IIC, Grade 3 or 4 explosion-proof
Description
With explosion-proof grade of ExdIIBT4 or ExdIICT4, this explosion-proof single girder overhead crane can be used at workshops with initiation ability lower than IIB or IIC, and danger area 1 or 2 (according to GB3836.1-2000). The explosion proof single girder overhead crane is mainly consisted of crane traveling mechanism, electrical system, bridge, explosion proof electric hoist, etc.
Application
LB type explosion-proof electric single girder overhead travelling crane is specially designed for flammable and explosive environment, and is suitable for dangerous places where explosive gas or dust mixtures exist. It is widely used in military industry, arsenal, petroleum, petrochemical, coal mine, chemical industry, aviation and other industries, and is able to safely and efficiently lift goods in workshops, warehouses and other occasions. The travelling overhead crane is particularly suitable for handling flammable and explosive objects or gases, such as petroleum products, chemicals, natural gas, etc. It ensures that the lifting tasks are completed under strict safety standards, and it is an indispensable lifting equipment in hazardous environments.
Don’t know how to choose the right crane for your hazardous environment? Contact Yangyumech NOW to find the right material handling equipment with our engineers.
Features
1. On mechanical system
High quality materials: Q235B or Q345B
Superior steel plates welded rectangular tube legs
Trinity-drive system or traditional drive by motor and reducer
Smoothly moving, effectively braking, long service life
2. ON electrical system
Independent and simultaneous control to all the electric hoist and crane movements.
Electric hoist mobile power supply is constituted of flat cables, special cables, galvanized slippery course and small cable pulley, etc.
Smoothly moving, beautiful appearance
3. On safety measures
Overloading protection
Height limit switches
Speed limit switches: fast to slow and stop
Buffer devices to hoist trolley and crane bridge
Lockable Mains Isolator at end of runway
Warning indicator: anti-collusion device and flashing lights and warning sound.
Motors with temperature control devices, with the insulation class F.
Self-adjusting, twin, disc brake on hoist motion, asbestos-free brake
Anti-Derailment Device on Crane and Crab Unit , Non-Sparking Type Crane, Crab Wheels and crane hook made from Anti-Sparking Material
Technical Data
| Span (m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Capacity (t) | 1~31.5t | ||||||
| Total weight (kg) | 1781~12086 | ||||||
| Trolley weight (kg) | 405~740 | ||||||
| Max. Wheel load (kn) | 13.5~90.94 | ||||||
| Travel rail | P24~P43 | ||||||
| Lifting speed (m/min) | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Lifting height (m) | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
| Total motor power （kw） | 4.31 | 4.31 | 4.31 | 4.31 | 4.67 | 4.67 | 4.67 |
| Crane speed (m/min) | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
| Trolley speed (m/min) | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
| Working duty | M5/A5 | ||||||
Components
-

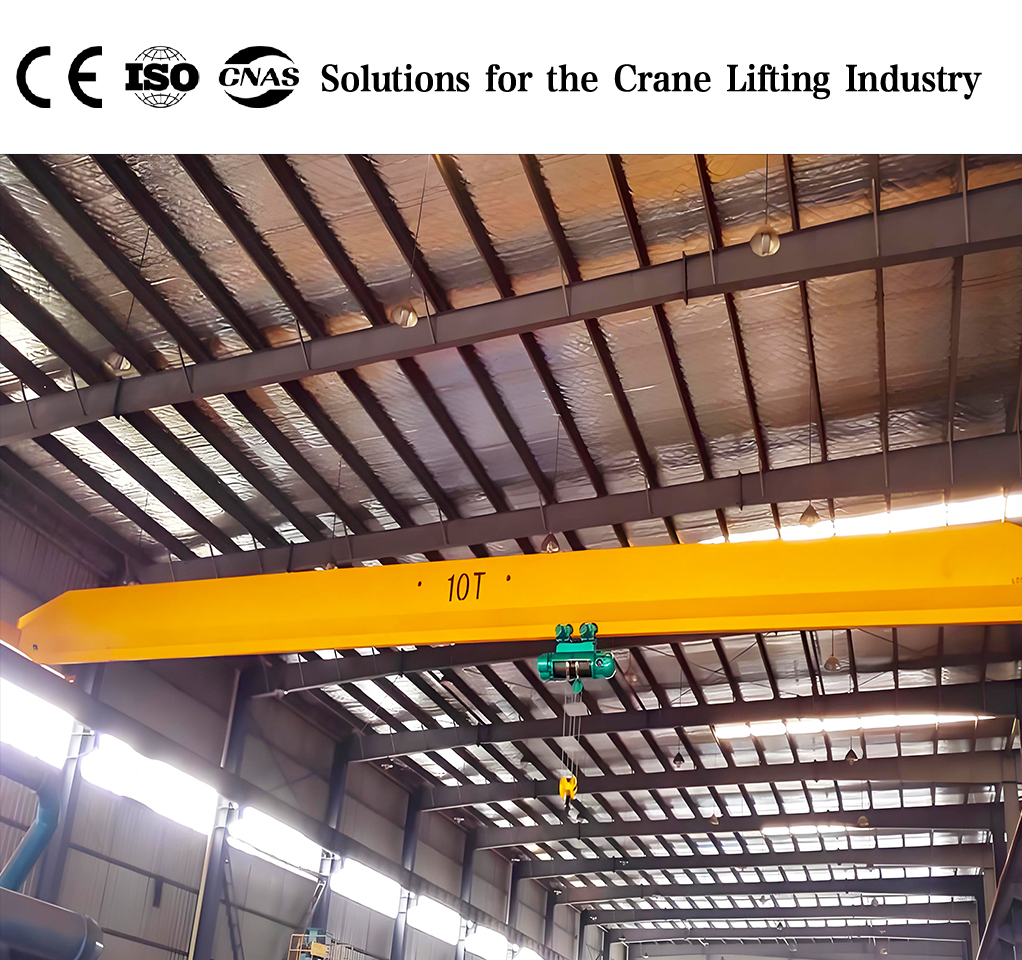

Explosion-proof single girder overhead cranes
When purchasing an explosion-proof crane, it is advisable to provide a cross-section of the refuge.indicating the height of the walls of the refuge, the height from the ground to the roof of the refuge, the width of the refuge,the curvature of the refuge, the height and width of the crane, the left and right limits of the crane, and the height at whichthe crane is intended to be lifted.
-
Main Girder
Main Girder will have sandblast derusting and painted with zinc rich epoxy primer.
Main Girder is cut by plasma numerical control cutting machine.
The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified. -
Ground Girder
Ground Girder will have sandblast derusting and painted with zinc rich epoxy primer.
The wheels of ground girder are produced in special vacuum casting workshop which make wheels more elastic and outer surface hard-wearing and durable. -
Control model
Can use control handle with pendant line, wireless remote control, or cabin control.
welding technology
