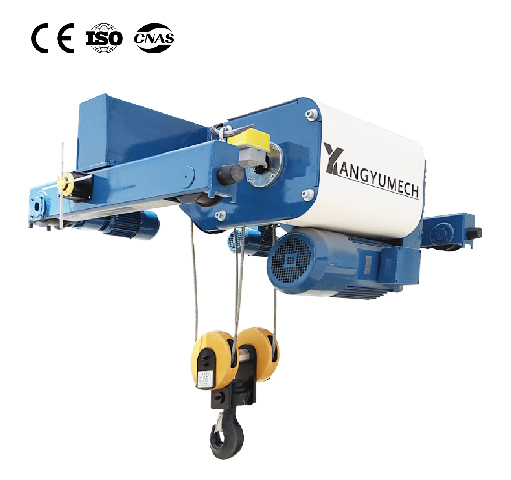

Electric Trolley, Electric Hoist With Trolley, Electric Hoist & Trolley Set
DF type series wire rope electric hoist adopts the European FRM design standards with advanced concepts , beautiful shape .The drive unit adopts domestic advanced point line meshing gear structure making the machine has compact reasonable structure .the operation is simple , convenient and working is safety and efficient and meet the low noise ,energy conservation and environmental protection requirements .
Capacity: 3.2-80t
Customized：YES
Description
This series of products are designed with frequency control of motor speed , small impact and it can realize accurate positioning ; Equipped with intelligent monitoring recorder which is similar to the ”black box" of plane , it can uninterruptedly record crane working status information and prevent false operation .The machine use maintenance free design with small vulnerability and convenient maintenance. The series of electric hoist applied with ll key points to declare the patent protection.The overall technical level has reaced the advanced level of similar products at home and abroad.
Lifting Mechanism:
The design strictly adheres to the relevant standards of FEM.
Aluminum alloy reducer housing
Smooth operation and low noise
Lifelong lubrication (within the safe usage period)
Double-disc electromagnetic disc brake
It’s mainly used in general hoisting, loading and unloading operations in machinery manufacturing workshops, warehouses, assembly and hydro-power station maintenance.
Features
Fixed parts, quality assurance: the combination of solid parts, fine and exquisite craftsmanship, quality assurance.
High assembly accuracy and long service life: forged wheel sets, machined boring assembly, high assembly accuracy and long service life.
Economical and durable: forged from high-quality manganese steel, it has high strength and abrasion resistance, is not easy to deform, and is not easy to break.
Compact structure, small installation size, reliable fastening, easy maintenance.

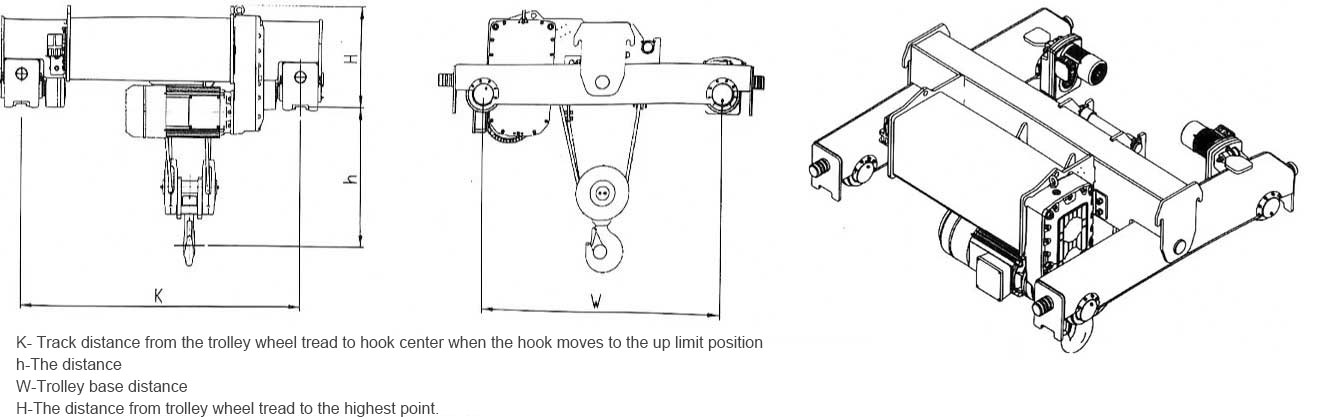

Technical Data
| Rated loadSWL(Kg) | Working level | Lifting height | Lifting speed | Driving speed | |
| Finite Element Method | ISO | m | m/min | m/min | |
| 2000 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 3200 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 5000 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 6300 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 8000 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 10000 | 1 a.m. to 4 p.m. | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 12500 | 1am to 3am | M3-M5 | 6/9/12/15/18 | 0.8/5 | 2~20 |
| 16000 | 1am to 3am | M3-M5 | 6/9/12/15/18 | 0.66/4 | 2~20 |
| 20000 | 1am to 3am | M3-M5 | 6/9/12/15/18 | 0.66/4 | 2~20 |
Components
-
Reel
The reel is made of high-quality seamless pipes and processed by numeral control machine after the special finishing, the rope groove on reel works in coordination with the rope guide to efficiently prevent rope looseing and tangling.
-
Steel rope
Employ imported steel rope with high strength which has tensile strength of 2160 kN/mm2, with good safety performance and a long service life.
-
Motor
The hoisting mechanism adopts a double-winding pole-changing squirrel-cage motor and a German-imported three-in-one reducer to achieve a speed ratio of 1:6. A thermal resistor is embedded in the winding group of the motor to prevent possible overheating of the motor.
-
Control model
Can use control handle with pendant line, wireless remote control, or cabin control.
