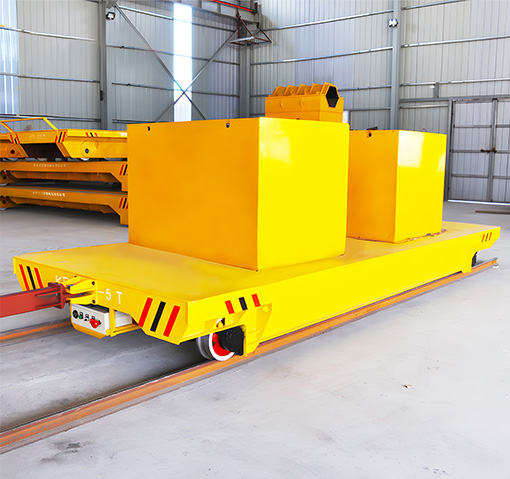

Cross Flat Cart, Electric Transfer Cart
Length: 2000-10000mm
Width: 1500-3000mm
Height: 450-1200mm
Wheel Diameter: Ф270-Ф600
Description
Brick factories, kiln factories, refractory material factories, ceramic factories, roasting factories, and other electric kiln vehicles; Electric transportation vehicles for engineering, tunnels, sanitation, electric dump trucks, electric sanitation vehicles, etc. Electric transport vehicles and electric dump trucks are also used in flour mills, concentrators, foundries, chemical plants, furnaces, farms, and more
Features
Transfer carts, also known as cross flat cart, transfer trolley, electric flat cart, have advantages as simple structure, easy operation and maintenance, large load capacity and so on, with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.
The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant, painting room, shipbuilding, new factory building project, machine processing line, heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
Technical Data
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф350 | Ф400 | Ф500 | Ф600 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed(min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight(t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Remark | The technical parameter of the material handling trackless transfer car only can be make reference above. All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time. | |||||||
