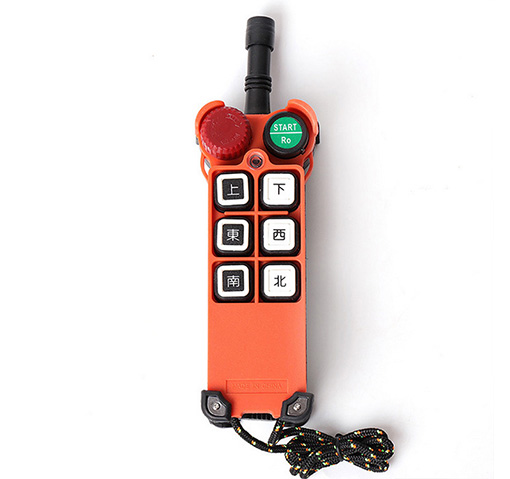

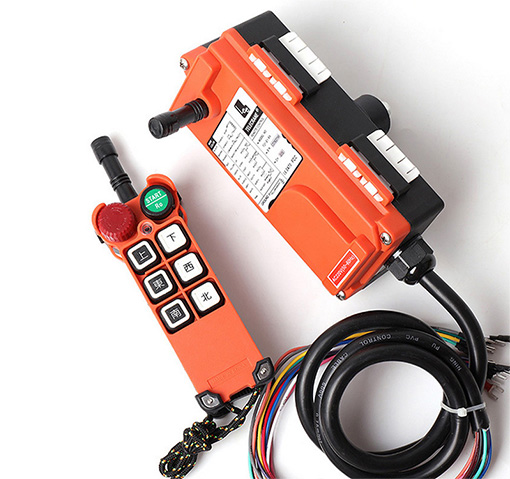

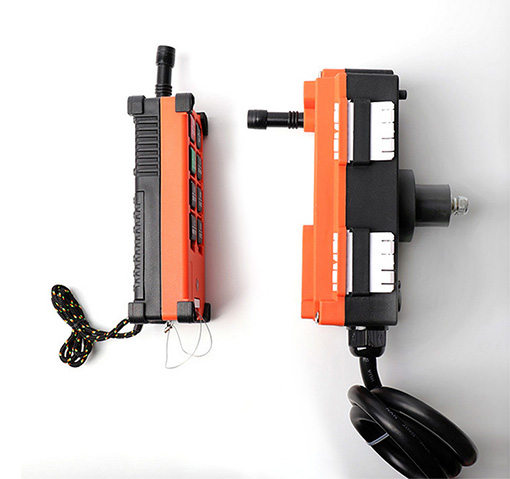

Crane Radio Remote Control

Precautions for installation and use of remote control:

1. Before installation, it is necessary to check that the contactor in the original electrical control box of the crane operates reliably and the contacts are not sticky, ensuring that the mechanical and electrical status of the lifting equipment is normal. Check if the voltage level of the bell used matches (based on this, determine the jumper method).

2. The default factory setting for the product is: the jumper is in the connected state (short circuited to common terminal A and common terminal B), and one common terminal can be selected. Remove the jumper cap to disconnect the connection between common terminals A and B. Use common terminal A for three sets of directional control buttons, The OFF/ON and ringing ports use a common B-terminal. The function of OFF/ON is the switch/emergency stop function, and the power switch wiring of the original handle can be retained without modification. As long as the buttons are operated in 6 directions and the OFF/ON terminals are connected in sequence, the power terminal of the receiver is directly connected to the 380V power supply. There are two 0.5A power fuses inside the receiver. It is necessary to ensure that two 0.5A power fuses are valid simultaneously. Three sets of interlocking control buttons, all with 5A safety. (Up and down/left and right/front and back).

Whether you need a simple two-motion single speed remote for you monorail, or a more complicated customized system for dual hoist bridge cranes with A-B Both functionality, we can find a solution for you.
