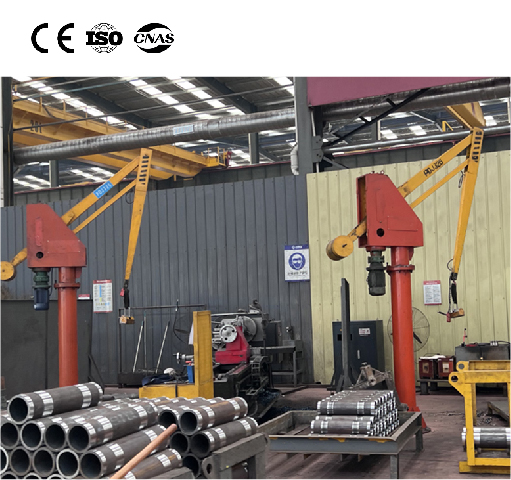

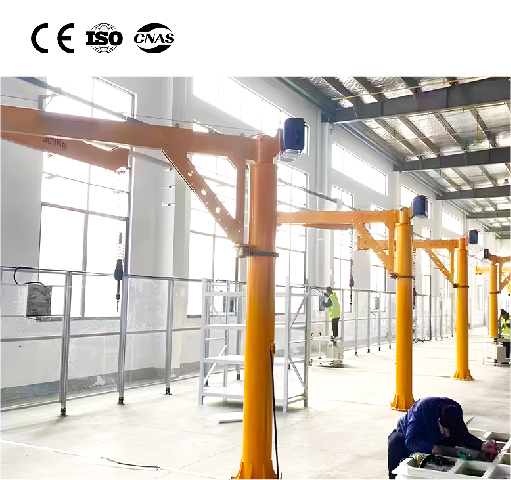

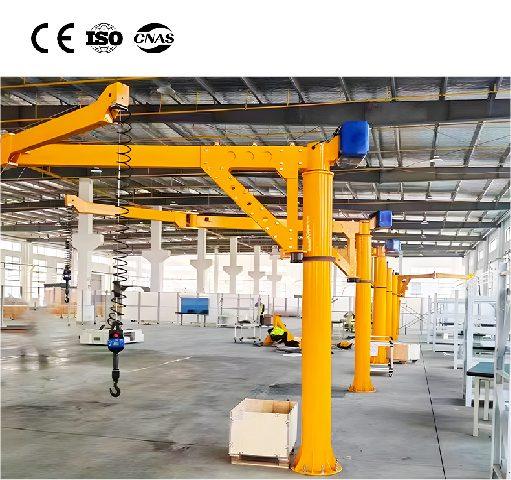

Column Mounted Jib Crane

Column Mounted Jib Crane

Column Mounted Jib Crane

Column Mounted Jib Crane

Column Mounted Jib Crane

Column Mounted Jib Crane

Column Mounted Jib Crane

Capacity: 0.25T – 5T

Lift height: 3m-8m

Span: 3m-7m

Power source: 380V 50Hz 3P or Customized

Inquiry Now Send E-mail

Description Features Technical Data Components

Description

Column Mounted Jib Cranes are very versatile in their use and can be combined with many lifting devices such as chain hoists, rope hoists, rope balancers or vacuum lifting devices. So Column Mounted Jib Crane is suitable for short distance, frequent use and intensive lifting operation. Their high degree of flexibility makes them the ideal helper for a wide variety of applications.

When installing the crane on a column, the pivoting angle is 270°. The crane can be installed freestanding in the room. For a weight of up to 1,000 kg, the Column Slewing Cranes use aluminium crane rails. This guarantees extreme responsiveness.

Features

Optimum ergonomics thanks to excellent low-friction properties

High working speed and positioning accuracy

Large working range due to generous swivel angles

Column height and jib arm length can be adjusted to conditions on the spot

Technical Data

Lifting capacity （kg）	Front outreach distance (m)
Specification	2	3	4	5	6	7	8	9	10	11	12
80
125
250					6.5
500
1000		3.5

Components
