What are the main components of a crane

2024-07-25

1. Boom:
– The boom is the main supporting structure of the crane, used for suspending and moving heavy loads.
– It can be fixed or telescopic to accommodate various work requirements.

2. Hook:
– The hook is the part that connects the crane to the object being lifted.
– It usually has a safety mechanism to ensure that the load does not accidentally fall off during lifting.

3.Wire Rope:
– The wire rope is used to connect the hook to the crane’s hoist system, transferring the lifting force.
– It requires regular inspection and maintenance to prevent wear or breakage.

4. Hoist System:
– The hoist system includes an electric motor and a reducer, used to control the winding and unwinding of the wire rope, thereby raising or lowering the load.

5. Sheaves or Pulleys:
– The pulley system assists in lifting the load by changing the direction of the force and increasing the force multiplier.

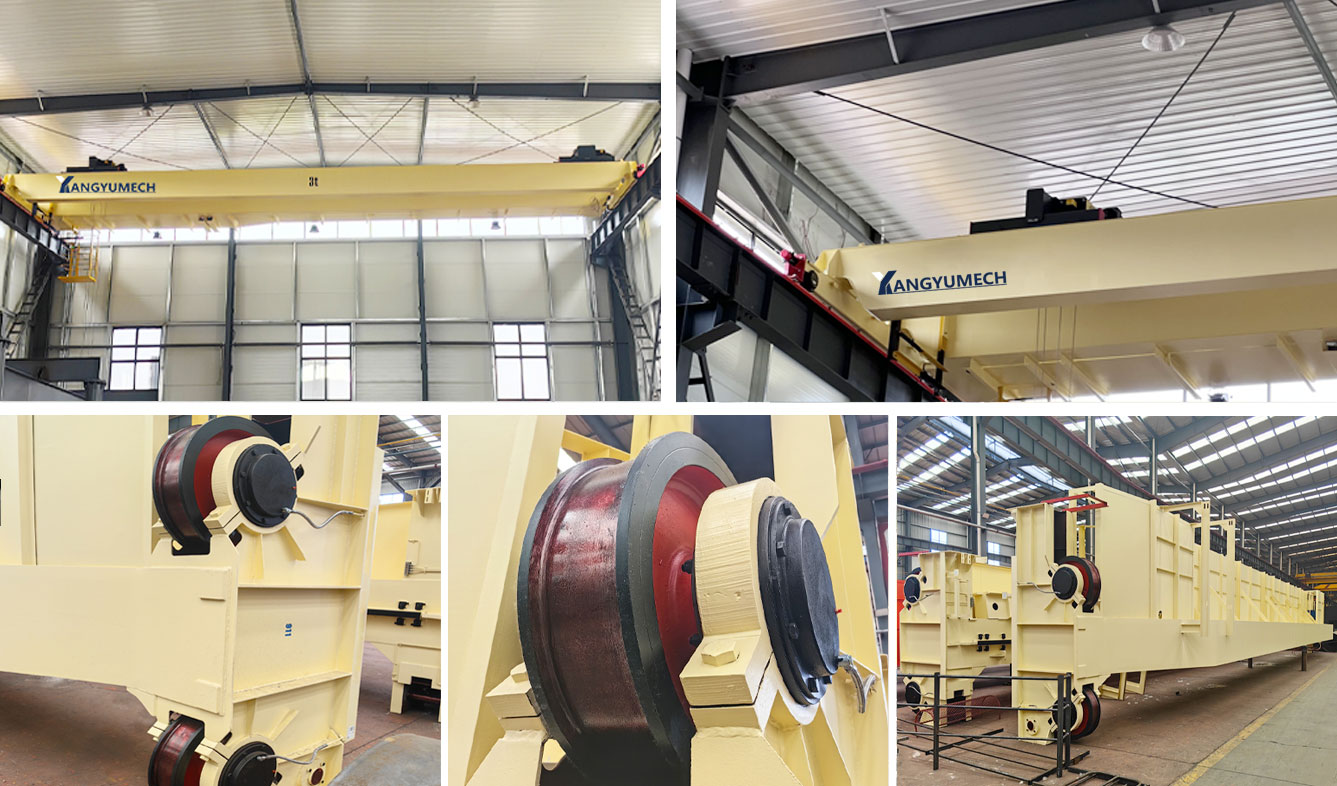

What are the main components of a crane

6. Revolving Mechanism:
– The revolving mechanism allows the crane’s boom to rotate horizontally, expanding the working range.

7. Traveling Mechanism:
– For mobile cranes, the traveling mechanism includes wheels or tracks, allowing the crane to move on the ground.

8. Cab or Operator’s Cabin:
– The cab provides an environment for the operator to control the crane.
– It is usually equipped with various control devices and safety equipment.

9. Hydraulic System:
– For hydraulic cranes, the hydraulic system is used to provide power to perform actions such as lifting, lowering, and extending.

10. Electrical System:
– The electrical system provides power for electric cranes, including cables, control panels, and various sensors.

11. Safety Devices:
– Includes overload limiters, limit switches, emergency stop buttons, etc., to ensure safe operation.

12.Counterweights:
– Some types of cranes, especially mobile cranes, use counterweights to increase stability and prevent the crane from tipping over when lifting heavy loads.

These components work together to ensure that the crane can safely and efficiently perform its task of lifting and moving heavy objects.
