Iron and steel metallurgical crane is one of the important key equipment in the production of iron and steel enterprises. The metal production industrial has the molten metal, severe heat, dusty, dangerous load and continuous production demands. We work with you to lift heavy and dangerous items throughout the operation process, from transporting raw material, to pour hot metal, to lift finished products in the rolling mill. From charging bay, converter bay, pouring bay, equipment maintenance bay, finished products stacking bay, our advanced products and service can improve the safety and productivity of operations across every area of your plant.
Iron and steel metallurgical crane requirements for reliability and fault free rate are very strict. According to type classification, most steel mills use bridge cranes and gantry cranes. According to the classification of lifting appliances, steel plants have hooks, grab buckets, clamps, lifting electromagnet cranes, etc.

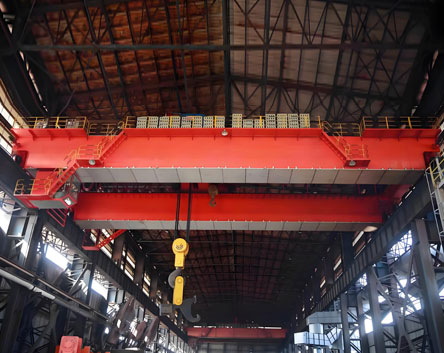

The casting bridge crane is the main equipment in the steel making and continuous casting process. It is mainly used for the converter to feed the molten iron into the converter; Lift the molten steel ladle to the refining furnace on the refining bay or lift the molten steel to the continuous casting ladle turret on the molten steel receiving bay.
Main features: high safety, high working level (A7~A8), severe working environment (high temperature, dusty).
From the overall structure, casting cranes can be divided into five categories: four-beam and four-track double trolley type, four-beam and six-track double trolley type, double-beam and double-track single trolley type, double-beam four-track double trolley type, and double-beam and double-track combined trolley.
This crane is heavy duty, its working duty is A6.
The entrance way to enter the driver's cab is divided into: end entry, side entry, and top entry.

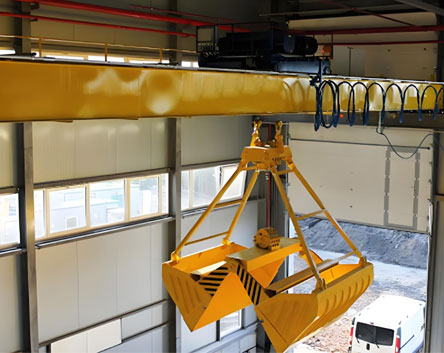

Crane rated lifting capacity includes the grab weight.
Grab's open direction is divided into parallel and vertical with main beam.
Grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.
The grab is only suitable for bulk materials in the state of natural accumulation. When grabbing underwater materials or special materials, it must be specially mentioned when ordering.

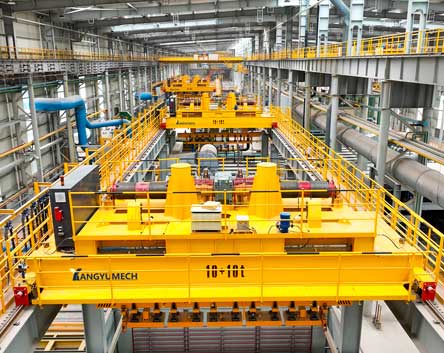

The electromagnetic hanging beam overhead crane is equipped with a detachable electromagnet, which is especially suitable for transporting ferrous metal products and materials with magnetic permeability, such as steel ingots, shape steel, and pig iron blocks. Mainly used in steel mill rolling line, finished product warehouse, shipyard steel stock yard, blanking workshop, etc. The lifting weight of this crane includes the electromagnet self-weight.

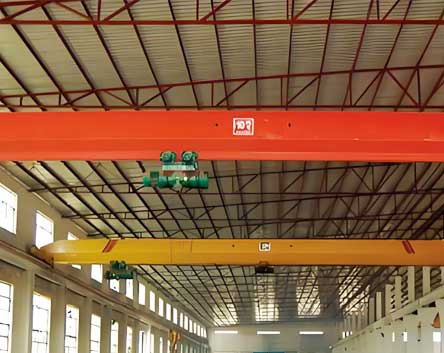

LDY model foundry overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device.
There are rail for the hoist trolley move on the main girder. The heat insulation device is equipped under electric hoist. LDY Single girder overhead crane is designed to lifting hot small ladle in steel mill/ metallurgy industry. The working ambient temperature could be up to 60 degree.The crane material will be high temperature resistance. And electrical parts will be equipped with cooler fan.

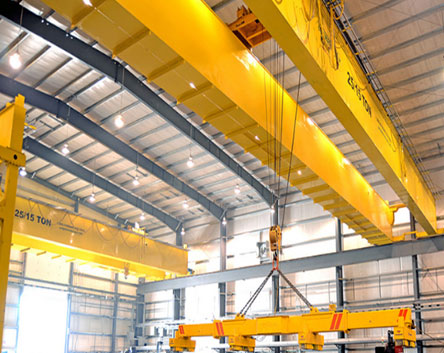

The crane has a detachable electric disk, which is especially suitable for metallurgical factories to load and unload or transport ferrous metal products and materials with magnetic permeability such as steel ingots, section steel, pig iron blocks, scrap iron, and scrap steel in fixed bays indoors or in the open air. It is also commonly used in machinery factories and warehouses to carry materials such as steel, iron blocks, scrap iron, scrap steel, iron filings and so on.

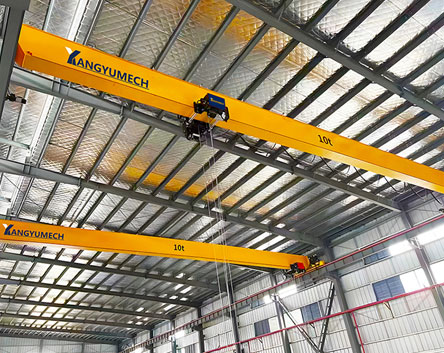

LDA Single Girder Overhead Crane is widely used in plant, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment. Single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole, used together with CD, MD model electric hoist as a complete set. In the metallurgy workshop, it is mainly for maintenance purpose.
The annual output is more than 900,00 units, with more than 100 sets of advanced equipment, and the full product line automation rate reaches 80% .
Control project delivery, cost and quality ,from design to end of building ,according to customer's technical requirements
Provide comprehensive training, including equipment structure and principle training, installation specification training, etc., also 24H after-sales technical supporting, to ensure equipment stable operation on site
We provide over 220 types of cranes and their related products, saving customers’ purchasing time.
