The port crane is a mechanical equipment that lifts the goods from the quayside to the ship or unloads the goods from the ship to the quayside. Container crane is a kind of crane used for loading and unloading containers. It is mainly used for container stacking and horizontal transportation in docks and stackyards. Compared with forklifts, it has the advantages of flexibility, ease operation, good stability, and low wheel pressure, high stacking layers, and high utilization rate. It can carry out cross-container operations, especially suitable for container loading and unloading in small and medium-sized ports, railway transfer stations and other places.

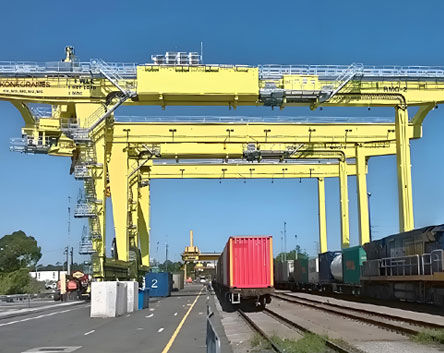

Rail-mounted container cranes are mainly used for container unloading, handling and stacking in container railway transshipment yards and large container storage and transportation yards. Rail-mounted container gantry crane is composed of main beam, rigid and flexible gantry legs, lifting trolley, crane running mechanism, electrical system, cabin room, etc.Rail mounted container gantry crane generally requires a large clearance in the width direction of the gantry leg, so the upper part of the gantry leg is opened into a U shape to connect with the upper part of the gantry leg, and a trolley maintenance frame is erected. The rail-mounted container gantry crane can load and unload 20', 40', 45' international standard containers. The lifting capacity is generally 36t and 40.5t. According to the site, container storage and transportation process and loading and unloading vehicles; The span can be divided into 26m, 30m and 35m; Cantilevers can be divided into non cantilevers, single cantilevers and double cantilevers; The upper trolley rotation and lower spreader rotation.

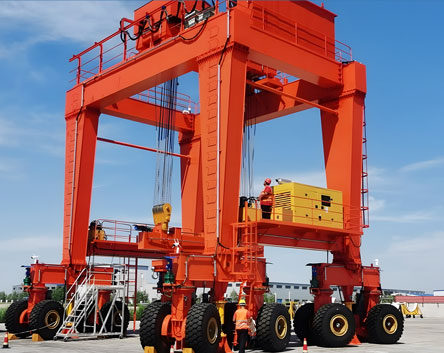

The rubber-tyred container gantry crane is a special machine for stacking containers. It consists of a gantry frame, a power transmission system, a hoisting mechanism, a crane traveling mechanism and a telescopic spreader. The lifting trolley equipped with the container spreader walks along the main beam track to perform container loading, unloading and stacking operations. The tire-type traveling mechanism can make the crane walk on the cargo yard, and can make a 90° right-angle steering to transfer from one cargo yard to another. , flexible work. According to the driving mode, the RTG can be divided into diesel engine-electric mode and diesel engine-hydraulic mode. The diesel generator system is generally arranged on the bottom beam, mainly composed of diesel generator sets, auxiliary devices and engine rooms.

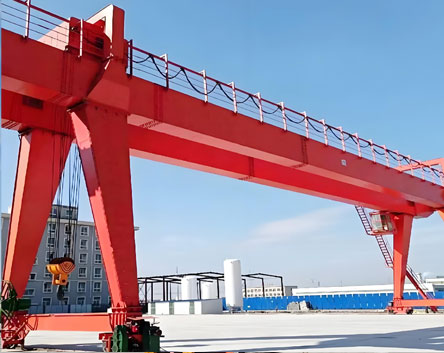

UMG type Double beam gantry crane is an ideal handling equipment for outdoor operation. Cantilevers can be added on both sides of the main beam, and the distance between straight legs can be increased to facilitate the passage of large goods from the straight legs. The power supply can be provided by cables, sliding contact wires and diesel generators. Gantry crane has the characteristics of high site utilization, large operation range, wide adaptability and strong universality. It is widely used in port freight yard. In the port, it is mainly used for the loading and unloading of outdoor freight yard, stockyard and bulk cargo.
The annual output is more than 900,00 units, with more than 100 sets of advanced equipment, and the full product line automation rate reaches 80% .
Control project delivery, cost and quality ,from design to end of building ,according to customer's technical requirements
Provide comprehensive training, including equipment structure and principle training, installation specification training, etc., also 24H after-sales technical supporting, to ensure equipment stable operation on site
We provide over 220 types of cranes and their related products, saving customers’ purchasing time.
